15 Hp Electric Driven Hydraulic Power Unit

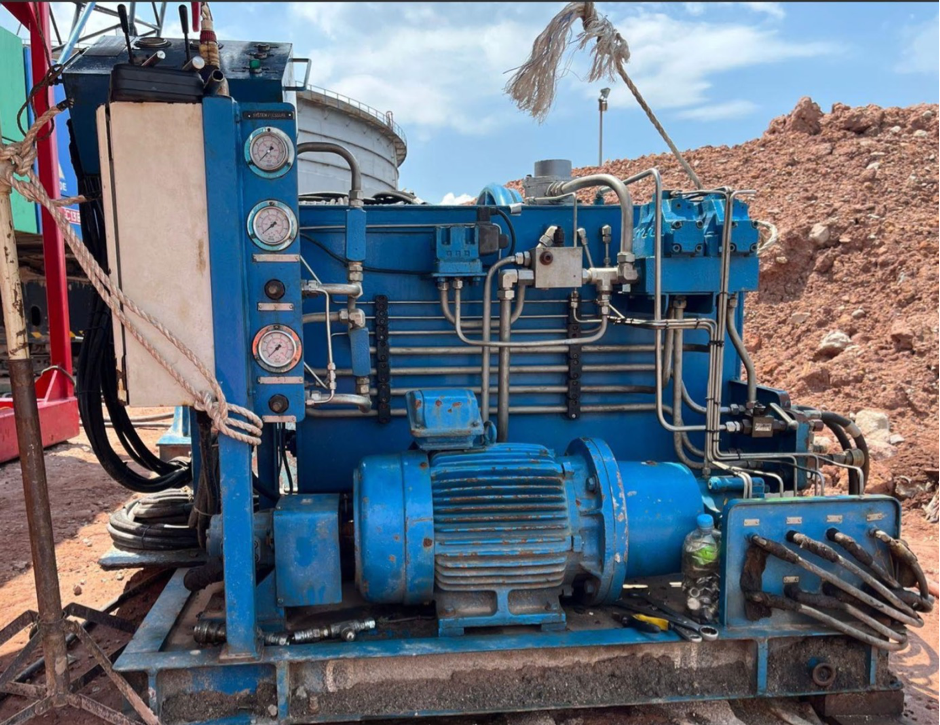

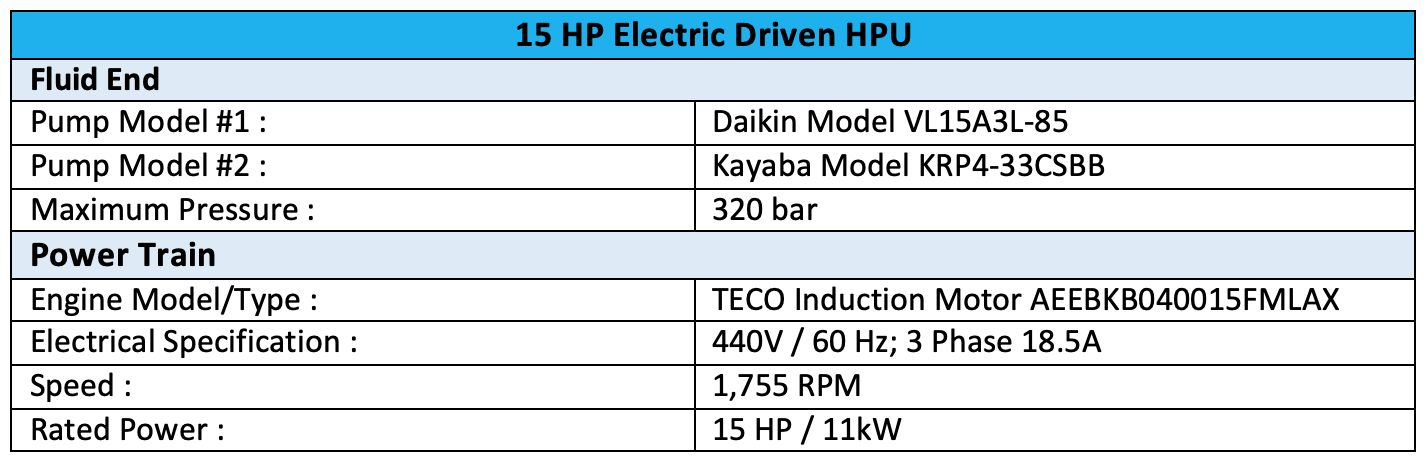

OCS’s 15 HP Electric Driven Hydraulic Power Unit (HPU) is a compact and reliable fluid power source, suitable for applications requiring moderate pressure and consistent flow. Powered by a TECO Induction Motor (Model AEEBKB040015FMLAX), the unit runs on 440V / 60Hz, 3-phase electricity, drawing 18.5A at a rated speed of 1755 RPM. Delivering 15 HP (11kW) of output power, it provides a stable and efficient drive for a range of hydraulic operations.

The unit features a dual-pump setup comprising a Daikin VL15A3L-85 and a Kayaba KRP4-33CSBB, engineered to operate at a maximum pressure of 320 bar. This configuration allows the system to perform reliably under high-pressure conditions where precision and control are essential. Designed for flexibility, durability, and ease of integration, this HPU is a valuable asset for supporting small- to mid-scale hydraulic applications, both offshore and onshore.
