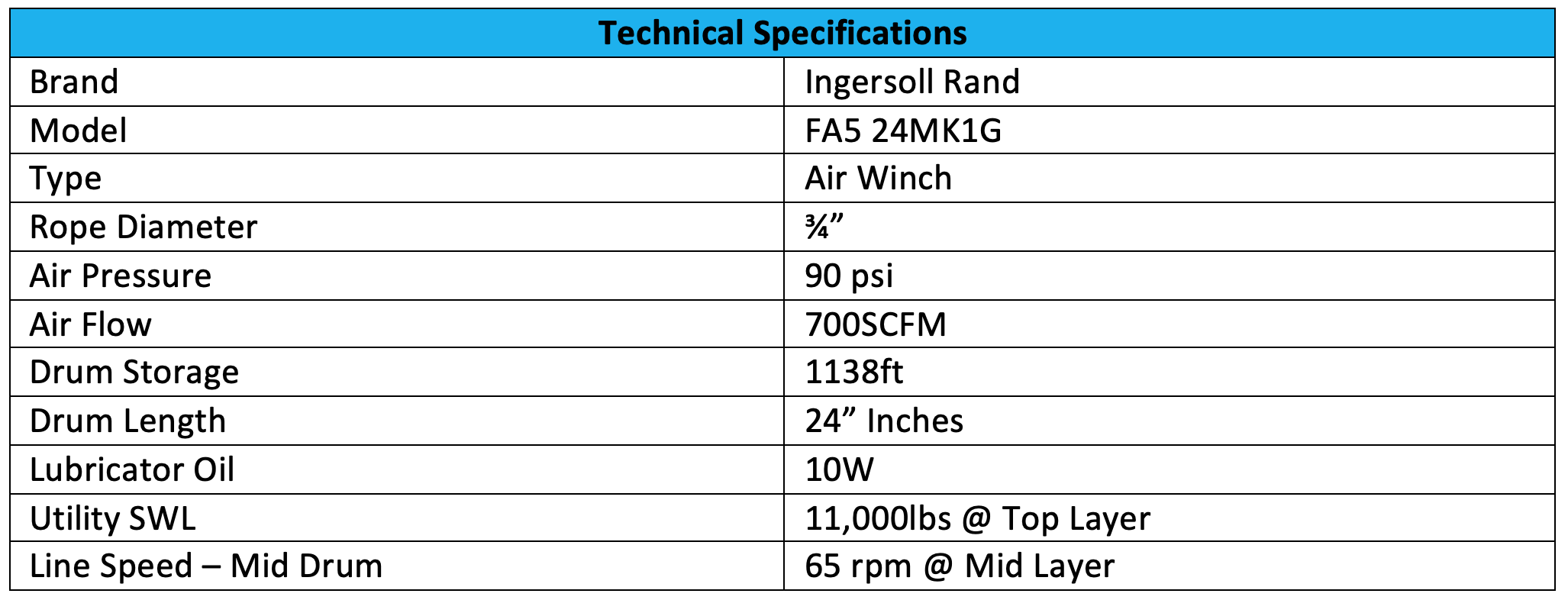

5t Air Tugger Winch Specifications

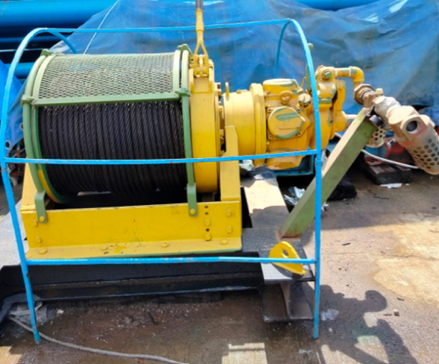

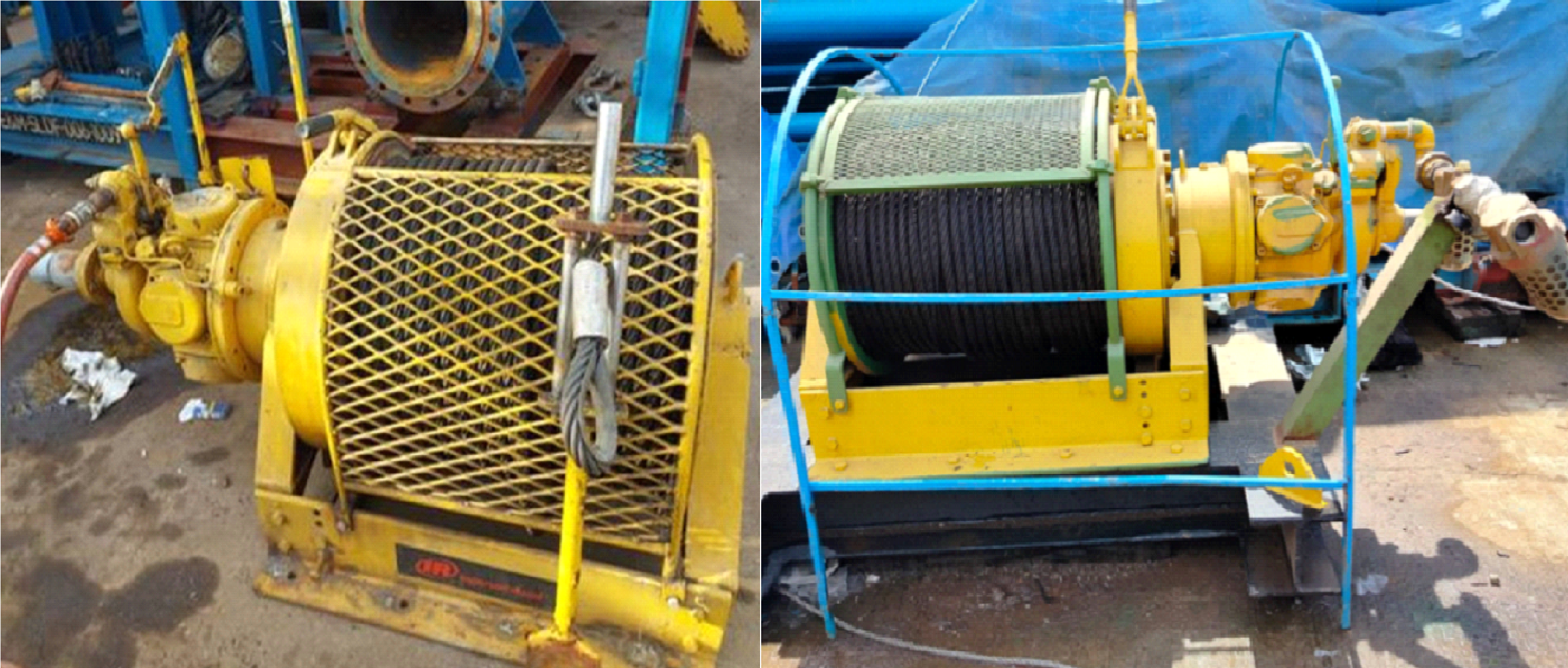

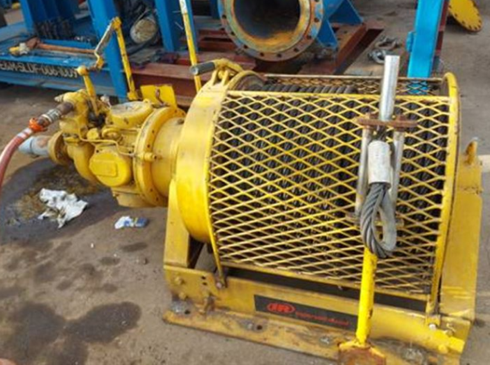

The Ingersoll-Rand FA5 24MK1G is a powerful and dependable air-driven winch, ideal for heavy-duty pulling and lifting tasks in OCS’s offshore construction operations. Built as part of the Third Generation™ air winch series from a premium radial piston motor with rugged cast steel housing, it is rated for 10,000 lb (4,540 kg) line pull at mid-drum, translating to 11,000 lb (5,000 kg) safe working load on the top layer. Designed for precision and control, it features a variable-speed lift-to-shift lever, an internal planetary gear system with built-in drum and disc brakes, and a minimum 18:1 drum-to-rope diameter ratio to reduce rope wear
Operating efficiently on 90 psi air pressure and approximately 700 scfm air consumption, the winch is engineered for continuous reliability even in challenging offshore environments. Its 24-inch drum can store up to 1,138 ft (347 m) of ¾″ rope, providing ample reach for down-rigger or pull-in applications. Weighing around 2,260 lb (1,025 kg) without rope, this winch is purpose-built to offer high force, precise control, and durability—perfect for OCS’s marine deployment across trenching, deployment, and subsea installation tasks
