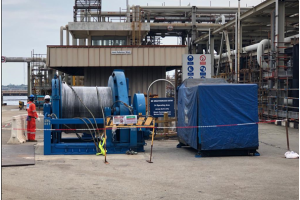

60T HYDRAULIC MOORING WINCH c/w 230KW DIESEL ENGINE HYDRAULIC POWER PACK
The technical specifications of 60T Hydraulic Mooring Winch are as below:
60T Hydraulic Mooring Winch Specifications | |

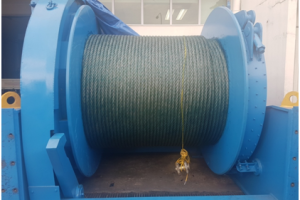

Drum Capacity | 1350m (Maximum) x Dia. 38mm SWR |
Rated Pull (1st Layer) | 60T x 0~6m/min (Low Speed @ 1st Layer) |
| 25T x 0~14m/min (High Speed @ 1st Layer) |
Drum Brake Holding | 130T (Static, 1st Layer) |
Brake Assembly | Hyd. Released, Spring Applied, Fail Safe Type |
Clutch Assembly | Hyd. Operated Jaw Clutch |
Ratchet Assembly | Hyd. Operated Pawl Type |
Ratchet Holding Capacity | 130T (Static, 1st Layer) |
Spooling | Auto Spooling Device with Manual – Declutch (For Dia. 52mm wire rope only) |
Control | Local Control Stand |
Dimensions | 4.2 x 3.0 x 2.6 (m) |
Weight | 16.8 Ton (Bare) |
No of Units | 1 |

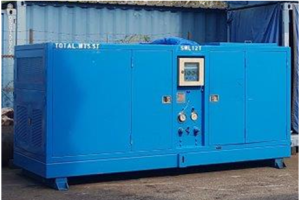

The technical specifications of 230kW Diesel Engine Hydraulic Power Pack are as below:
230kW Diesel Engine Hydraulic Power Pack Specifications | |
Engine | NISSAN Diesel RF8 |
Power & Speed | 230kW @ 1500 rpm |
Hydraulic Piston Pump | A11VO260LRDS/11R-NZD 12N00 (1 x 350L/min) |
Pressure Setting | 230 Bar |
Working Pressure | 210 Bar |
Air Cooler | OK-ELD6H/3.1/24V/1/S |
Hydraulic Oil Tank Capacity | 1125L |
Diesel Oil Tank Capacity | 400L |
Engine Fuel Consumption | 80L/h |
Dimensions | 3.8 x 1.8 x 2 (m) |
Weight | 5.5 Ton |
No of Units | 1 |
