75 Hp Electric Driven Hydraulic Power Unit

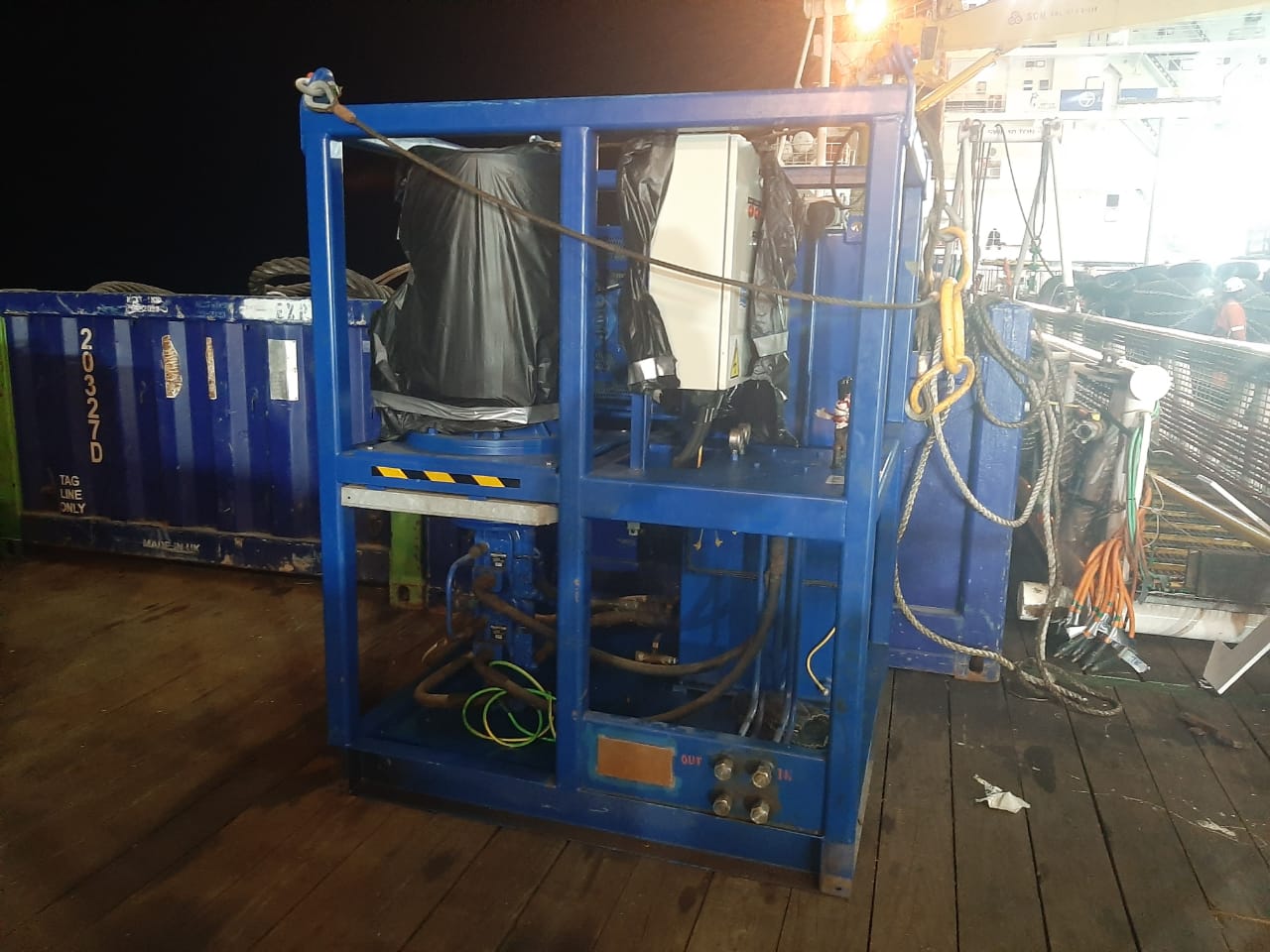

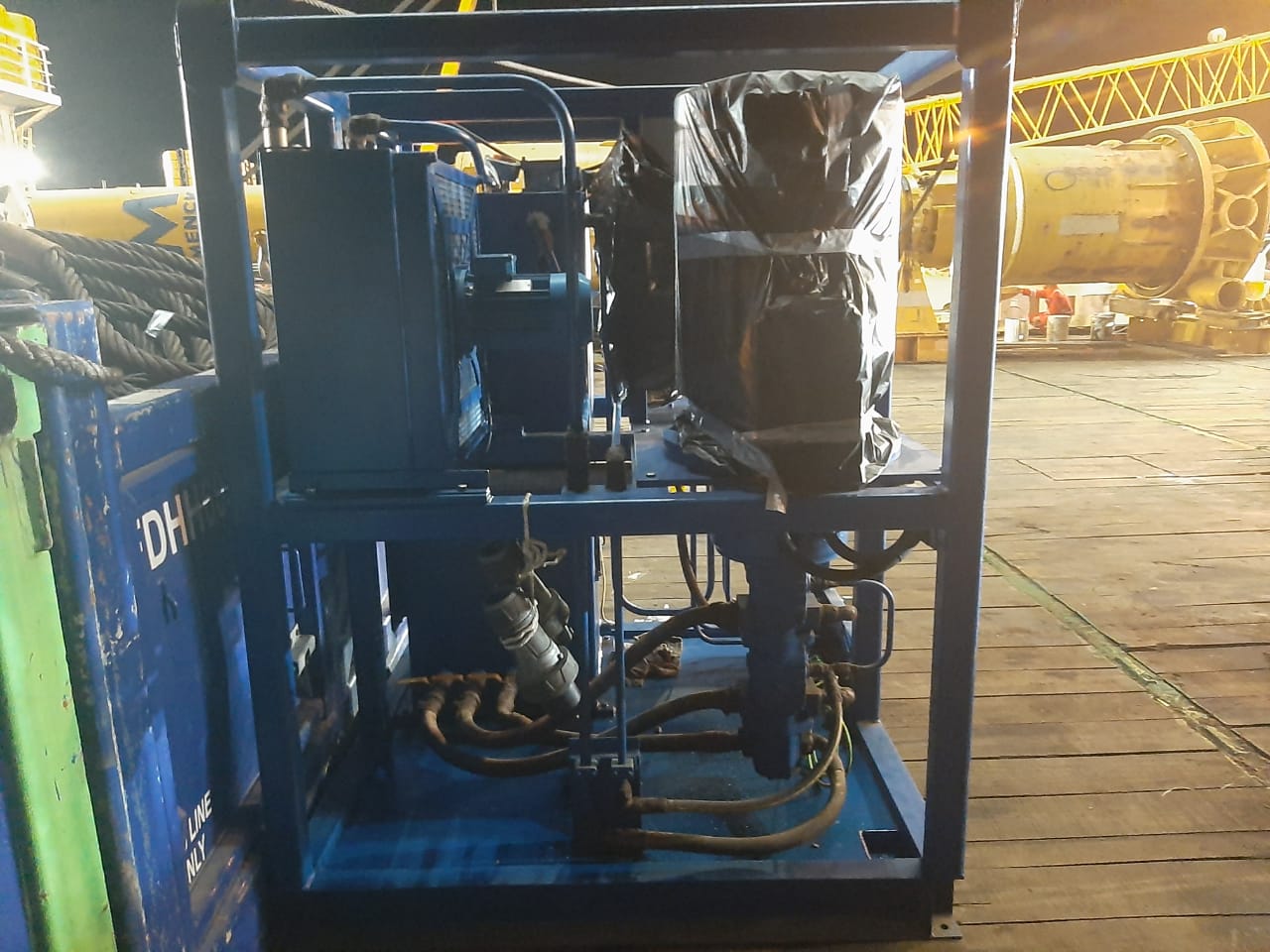

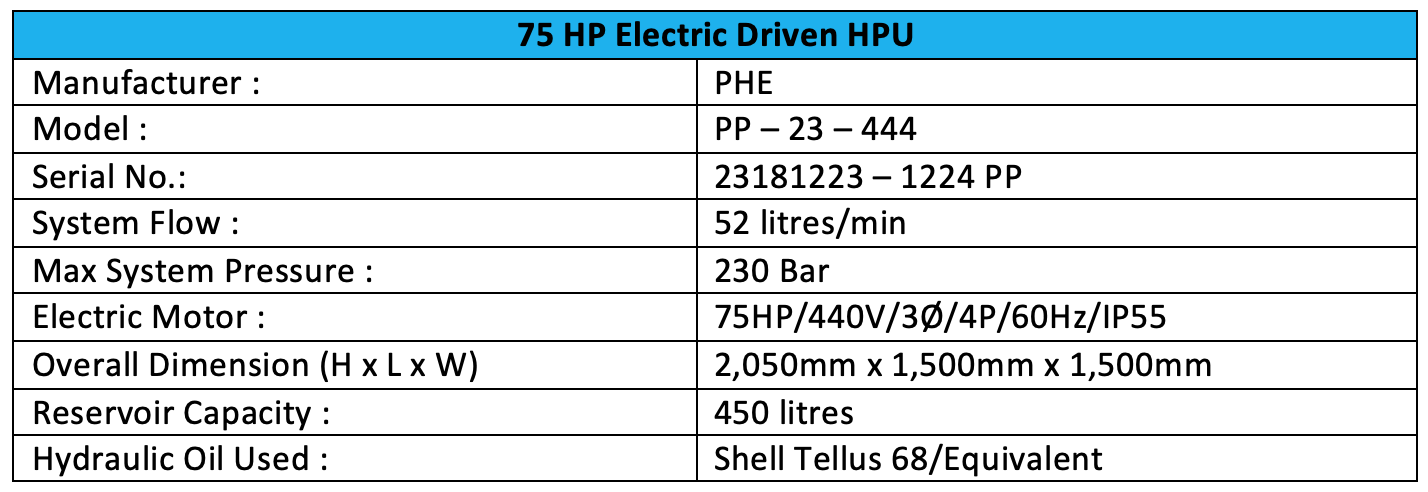

Manufactured by PHE, the 75 HP Electric Driven Hydraulic Power Unit is engineered for robust and consistent hydraulic performance. Operating at a system flow of 52 litres/min and a maximum pressure of 230 bar, this unit is well-suited for medium to heavy-duty hydraulic applications where stable output and reliability are critical.
The power unit is driven by a 75 HP electric motor, rated at 440V, 3-phase, 4-pole, 60Hz, IP55, ensuring high efficiency and durability in demanding environments. With a 450-litre reservoir and compatibility with Shell Tellus 68 or equivalent hydraulic oil, the unit is designed for optimal thermal stability and system longevity. Its compact form factor allows for easy deployment in constrained spaces without sacrificing performance.
