DAVEY DIESEL DRIVEN FLOODING PUMPS
DAVEY DIESEL DRIVEN FLOODING PUMPS

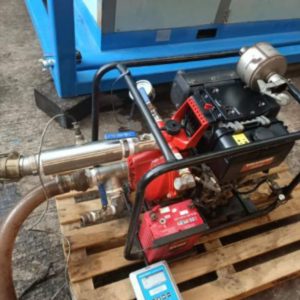

OCS owned and operated, Davey Pumps is a diesel driven self priming pump which can produce flow of up to 800lpm. It is run by a yanmar engine and has twin impellers. The Davey pump has proven multiple times that it can not only transfer water or glycol but even be used for the pre commissioning services flooding, cleaning and gauging. DAVEY, is one of the most highly respected brands in the world and have a long standing reputation for outstanding quality, durability and reliable performance.
The Davey Pump is associated with the services as per below
- PIPELINE PRE-COMMISSIONING
| Engine Specification | Operating Limits | ||
|---|---|---|---|
|
Pump Make |
Davey |
Flows to |
8001pm |
|
Pump Model |
5210YE Twin Impeller |
Maximum total heads |
92m |
|
Engine brand |
Yanmar L100 |
Maximum Suction Lift |
7m |
|
Engine Type |
Diesel |
Maximum Water Temprature |
50 Degree Celsius |
|
Displacement(cc) |
406 |
Minimum Water temprature |
1 Degree Celsius |
|
Fuel Tank (Liters) |
5.5 |
Minimum Suction Pipe Size |
2" |
|
Engine Oil Pan Capacity |
1.65 |
Inlet Size |
2" BSP(M) |
|
Approx.fuel consumption @full load |
2.51/hr |
Outlet Size |
2" BSP(M) |
|
dBa @ 7m @ full load |
82.5 |
Priming Port |
1*1 1/2" BSP(M) |
|
Air Filter Type |
Dry Element |
Cooling System |
Forced air by Flywheel Fan |
|
Spark Arrestor |
Yes |
Lubrication system |
Forced lubrication with trochoid pump |
|
Dimension(mm) Length*Width*Height*Weight |
471*19.4*494*66kg |
Starting system |
Electric start or Recoil Start |
DAVEY DIESEL DRIVEN FLOODING PUMPS Data Sheet Download
