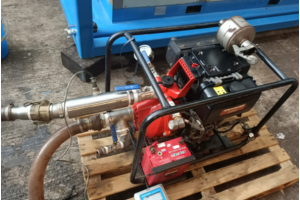

Davey Water Pump
| Engine Model: Yanmar L100N | Quantity:1 |
|---|---|
| Type No. of Cylinders Bore x Stroke(mm) Displacement(litres) | 4-stroke,vertical cylinder,air-cooled diesel engine 1 86×75 0.435 |
| Continuous Rated Output r/min-1 Kw PS High Idling r/min-1 | 3600 3600 6.6 5.7 9.0 7.7 3800 3175 |
| Dry Engine Weight with Electric Start (lbs/kg) Dry Engine Weight without Electric Start(lbs/kg) | 118/53.5 107/48.5 |
| Cooling system Lubrication System Starting System | Forced Air by Flywheel Fan Forced lubrication with Trochoid Pump Electric Start/ Recoil Start |
| Dimensions(inches/mm) Length x Width x Height Engine Oil Pan Capacity Dipstick Upper Limit Dipstick Lower Limit Fuel Tank Capacity(recommended) | 16.2 /412 x 18.5 / 471 x 19.4 / 494 1.7 qt / 1.6 litres 1.06 qt / 1.30 litres 5.0 qt / 4.7 litres |
| Pump Specifications | Operating Limits |
|---|---|
| Flow capacities to | 800lpm |
| Maximum total head | 92m |
| Maximum suction lift | 7m |
| Maximum water temperature | 50C |
| Minimum water temperature | 1C |
| Minimum suction pump size | L70= 1 ½ “ , L100=2” |
| Suction pump strainer | Required |
| Inlet size | L70= 1 ½ “ BSP(M) , L100=2” BSP(M) |
| Outlet size | L70 2 x 1 ½ “ BSP (M) 2 X 1” BSP(M) L100 1 x 2” BSP(M) 2 x 1” BSP (M) Priming port 1 x 1 ½” BSP(M) |
