15TE 2TRACK ELECTRIC DRIVE HORIZONTAL TENSIONER
15TE 2TRACK ELECTRIC DRIVE HORIZONTAL TENSIONER

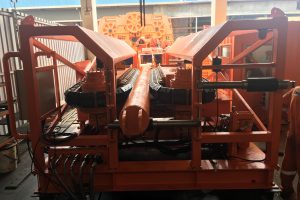

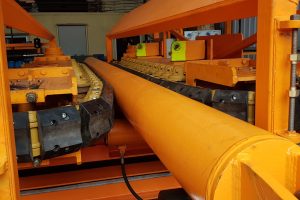

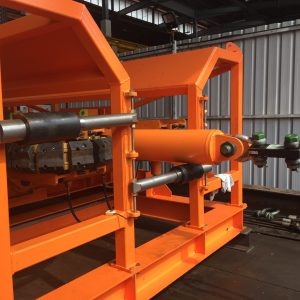

OCS owned 15Te 2-Track Horizontal tensioner is a two-tracked unit with two horizontal with polyurethane molded “V” shaped pads between which the product is gripped. Bolted to each caterpillar type chain are 54 units of “V” sharped pads, 108 in total for two tracks. The standard track pad has a “V” angle of 150 degree. The tensioner is designed to transmit linear motion to the product. The product will typically be SURF – subsea umbilical, risers and flow lines, cables or rigid pipe. Linear motion is transmitted by the tracks driven at one end, together with traction resulting from gripping of the product by track pads. This tensioner can be set to operate in pull-in, pay-out or constant tension mode.
This Tensioner spread consist of the Horizontal Tensioner, a control cabin and a 55kw electro hydraulic power unit
The 15Te 2-Track Horizontal tensioner is associated with the services as per below
- CABLE LAY
- PIPELAY
- SUBSEA UMBILICAL RISER FLEXIBLE (SURF) SERVICES
| 15Te 2-Track Horizontal Tensioner | |
|---|---|
|
Tension Rating |
15 Te |
|
Lay Speed |
18 m/min (1080 m/hour) |
|
Product Capacity |
50 ~350 mm |
|
Max. Track Opening |
400 mm |
|
Contact Length |
2.5 m |
|
Max. Track Squeeze |
85Te/Track |
|
Brake |
Fail-safe Hydraulic-release disc brake type |
|
Drive |
Hydraulic |
|
Control Type |
Pay In / Out |
|
Operating Temperature |
0 ~45 degree Celsius |
|
Dimensions |
5200 (L) x 2900 (B) x 2190 (H) mm |
|
Gross Weight |
Approx. 11.5-Te |

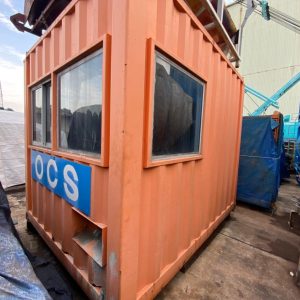

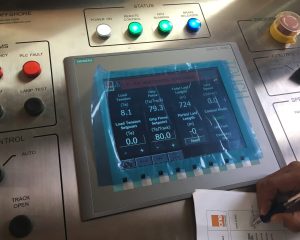

| Air Conditioned Control Cabin with Remote Control Console (RCC) | |
|---|---|
|
Operating Temperature |
0 ~45 degree Celsius |
|
Dimensions |
3051 (L) x 2438 (B) x 2591 (H) mm |
|
Gross Weight |
Approx. 4.5-T |

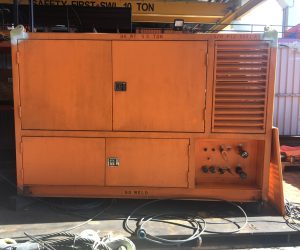

| 2 x 55kW Electro-Hydraulic Power Unit | |
|---|---|
|
Drive |
2 x 55kW Electric motor
2 x 11kW Electric motor
|
|
Hydraulic Pump |
2 x Axial Piston Pump
2 x Axial Piston Pump
|
|
Hydraulic Tank Capacity |
900 litre |
|
Power Supply |
440V/400V , 60Hz, 3 Phase |
|
Oil Cooling |
Air Cooled |
|
Operating Temperature |
0 ~45 degree Celsius |
|
Dimensions |
3112 (L) x 1820 (B) x 2073 (H) mm |
|
Gross Weight |
Approx. 11.5-Te |
15TE 2TRACK ELECTRIC DRIVE HORIZONTAL TENSIONER Spread Data Sheet Download
