90 MT CRAWLER CRANE
90 MT CRAWLER CRANE

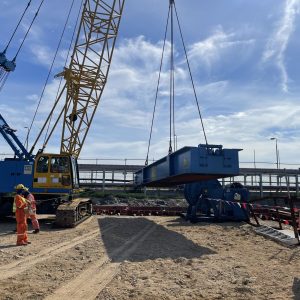

OCS owned Hitachi Sumitomo lattice boom SCX 900-2 Crawler Crane is one of the main key support equipment especially for our UB01 operations.
It has an engine performance of 184kW or 246 horse power & a maximum carrying capacity of 90tonnes. With a maximum boom length of 60m, this model is constructed to deliver a load torque of 3531kNm.
The Crawler crane consists of an upper carriage mounted on a crawler type undercarriage. The upper deck and attachments rotate 360º
They are ideal for materials handling and dredging work. The main advantage of these cranes is, it is easy to lift and move the heavy loads from one end to another end while in operation.
To top it up, the crawler is actively certified by Singapore Ministry of Manpower for use in Singapore Refinery sectors
The SCX 900-2 Crawler Crane is associated with the services as per below

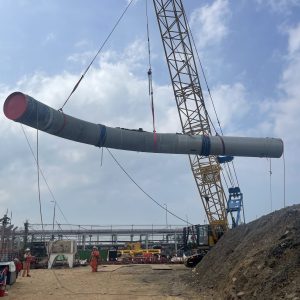

- PIPELINE SHORE APPROACHES
- PIPELINE POST TRENCHING
- PRE TRENCHING SERVICES
- UTILITY BARGE
| Engine | |
|---|---|
|
Crane ID |
OCS-E&M-CRA-001 |
|
Brand |
HITACHI SUMITOMO |
|
Model |
SCX900-2 |
|
Type |
Crawler Crane |
|
Year of Manufacture |
2011 |
|
Serial Number |
SC 090-7363 |
|
Max Capacity |
90 Ton |
| Engine | |
|---|---|
|
Engine Manufacturer |
Isuzu 6HK1X |
|
Engine Power |
184Kw |
|
Engine Type |
Diesel Driven |
|
No of Cylinders |
6 |
|
Cylinder Bore & Stroke |
115 mm x 125 mm |
|
Displacement |
7,790cc |
|
Fuel Tank |
415 litres |
| Boom | |
|---|---|
|
Boom connections |
In-line pin connections at 1.55m deep and 1.55m wide |
|
Basic boom |
2 piece, 12m basic length; 6m base and tapered top sections |
|
Min Standard Boom |
12m |
|
Max boom length |
60m for lift crane application/24m for clamshell application/27m for dragline application |
|
Max fly jib length |
28m |
|
At Reach |
4m |
|
Load Torque |
3351kNm |
|
Total Counter Weight |
29.7Ton |
|
Auxiliary Counter Weight |
2Ton |
|
Hook Blocks |
90Ton four sheaves with duplex type hook |
| Drum | |
|---|---|
|
Drum Wire(Front) |
200m |
|
Drum Wire(Rear) |
170m |
| Drum Data | |||||
|---|---|---|---|---|---|
|
Drum |
Root dia. |
Type |
Line speed |
Cable |
Max line pull |
|
Front |
554mm |
Parallel grooved |
110 ~ 2 mpm |
26mm |
196kN <20t> |
|
Rear |
554mm |
Parallel grooved |
111 ~ 2 mpm |
26mm |
196kN <20t> |
|
Boom hoist |
463.6mm |
Parallel grooved |
46 ~ 2 mpm |
22.4mm |
152kN <15.5t> |
|
optional 3rd |
554mm |
Parallel grooved |
73 ~ 2 mpm |
26mm |
196kN <20t> |
