After Cooler Specification
| AFTERCOOLER | . |
|---|---|
| Air Handling Capacity | 3000CFM/ 85Nm3/min (Continuous Flow) |
| Maximum Working Pressure | 30Bar / 3.0MPa |
| Aftercooler Performance | Reduction of Temperature from 80.C to 40.C |
| Power Requirements | 220VAC, 50Hz |
| Inlet / Outlet Flange Size | 6″, 300#, RF Flange |
| Air Handling Hoses | 2″, 600psi, MNPT Threaded |
| Skid Framing | 3100 x 1700 x 2500mm x 3MT |
| No of Units | 2 |

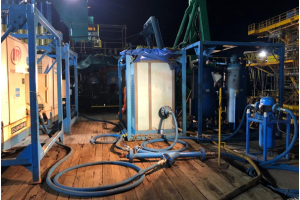

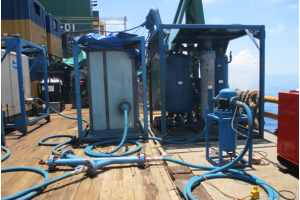

The aftercooler is attached between the compressor manifold and the regen dryer.
The primary function is to:
– Remove heat from the air content
– Remove oil content from the air moisture
The oil/water separator is made up of EX proof pressure vessel with carbon 3-5mm granules and lows continuous air to flow through it. It removes the oily moisture content in the air and purges the water out from beneath via a 1/2″ piping. Purging time is time controlled via a timer solenoid valve every 10 minutes.
