DIESEL DRIVEN HIGH VOLUME / PRESSURE 4 STAGE CENTRIFUGAL FLOODING PUMP
DIESEL DRIVEN HIGH VOLUME / PRESSURE 4 STAGE CENTRIFUGAL FLOODING PUMP

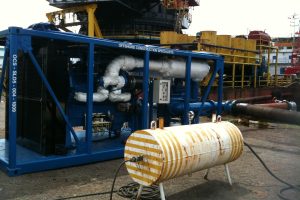

OCS owned 4 staged pump (12V149 engine driven) units are skid mounted pumping unit that can be used for high pressure water. Main type of operations performed using these units are pipeline pre-commissioning, Pipeline post burial (Trenching) and Pile remedial operations using Jet/Airlift techniques.
OCS own 3 x 12V149 Diesel engine driven pump skids. The skids have been designed to accommodate 4 stage fluid ends (250SLD450-60X4) and high pressure/high volume fluid ends (SLOW 250-550) for pipeline post trenching operations. Depending on the scope of work, the 4 stage pumps can also be used for various services as per below
The 4 stage pump is associated with the services as per below
- PIPELINE SHORE APPROACHES
- PIPELINE POST TRENCHING
- PIPELINE PRE-COMMISSIONING
- PILE REMEDIAL SERVICES
- PRE TRENCHING SERVICES
- WATER DISTRIBUTION SYSTEMS
| 4 stage pump specifications | |
|---|---|
|
Fluid End |
250SLD450-60x4 |
|
Flow Rating Head : 260m @ 1480rpm |
335m³/Hr (1475 USgpm), |
|
Flow Rating Head : 420m @ 1900rpm |
429m³/Hr (1889 USgpm), |
|
Suction Inlet |
10”, #300 |
|
Discharge |
8”, #300 |
|
Power Train |
GM 12V149TI 2-Stroke Diesel Engine |
|
Power Output bhp (kW) |
1130 (843) @ 1900rpm |
|
Peak Torque –lb ft (N.m) |
3178 (4309) @ 1400rpm |
|
Skid Framing |
6100 x 2400 x 2400mm x 8MT |
|
No Of Units |
3 |
DIESEL DRIVEN HIGH VOLUME / PRESSURE 4 STAGE CENTRIFUGAL FLOODING PUMP Data Sheet Download
